Which standoff for the Contego?
I am going to get rid of the backspacer on my 810-1401, but I can't remember which titanium spacer it requires. The .190 x .187, or the .190 x .250?
1
-
Either one will work.
I used .250"
0 -
Ti spacers look great. Where can you buy them?
Secondly are there Ti offsets for 94-1 and 950 as well
Thanks Bill0 -
Thanks Bill.
Knifekits has many different styles of standoffs available for puchase, in both SS & Ti.

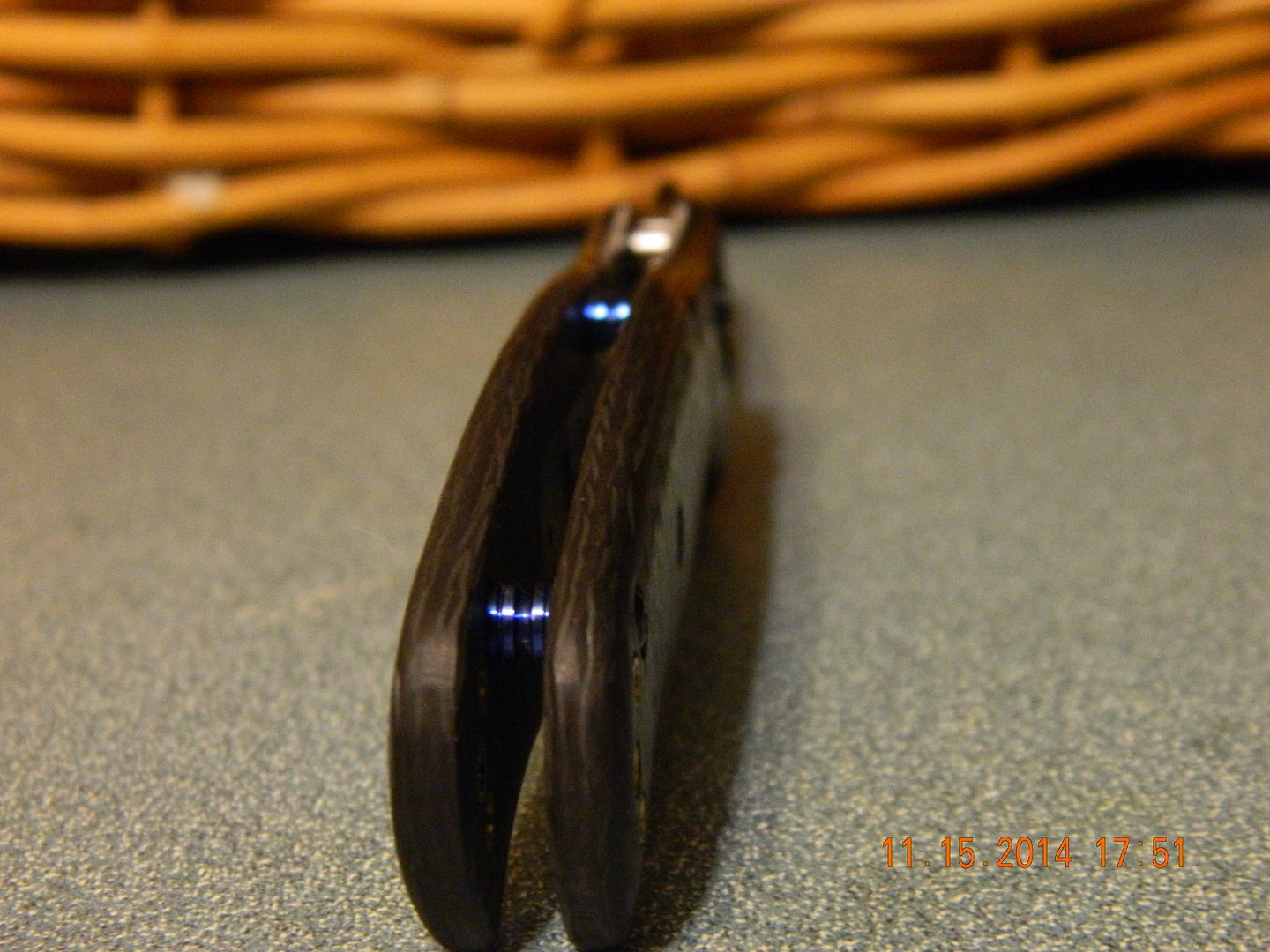

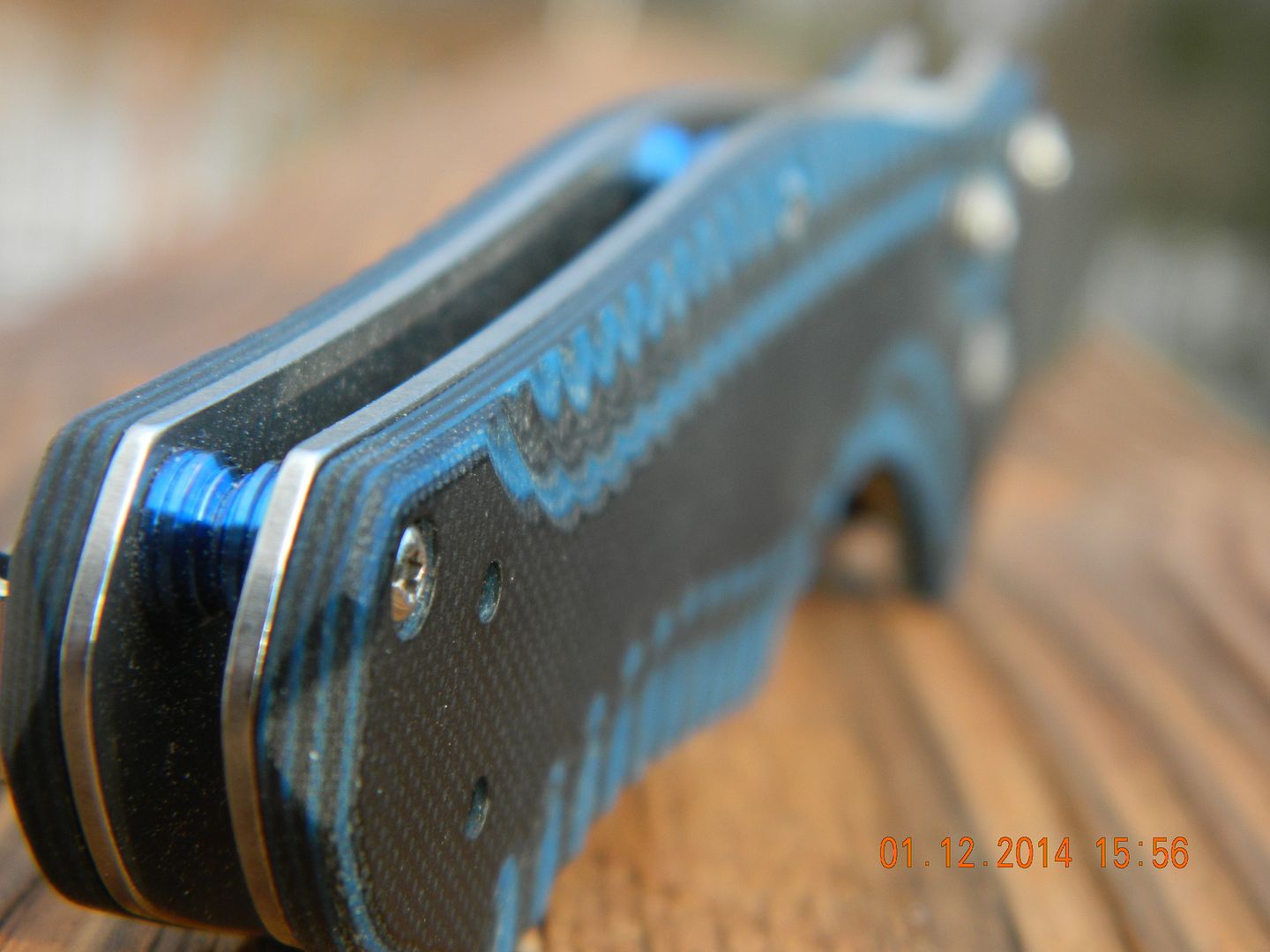

The one's pictured above are Ti and have been anodized by Maprik.
I do not remember the size required for the 940.
I do have a 950 and can put some mic's on it to give you the spec.'s you need (later today).
Generally speaking, If I can't find exactly what I'm looking for (size wise) I just get something taller than what I need and then shorten it to the precise spec.'s that I am looking for.0 -
Just for fun I measured the space between the CF handles on my 940-1. The measurement I keep getting is 0.161". That isn't even a normal size, is it? 0 -
.161" does sound a little off.
710's & full size grip/ritter's is .165".
One of the most accurate places to measure is between the liners right next to the stop pin.0 -
Ha! Right by the stop pin I'm getting 0.165".quote:Originally posted by Keyman:
.161" does sound a little off.
710's & full size grip/ritter's is .165".
One of the most accurate places to measure is between the liners right next to the stop pin.0 -
Gentlemen,
I appreciate the information.
I'd like to change out all the Al offsets on all my 940-1,& 950 with Ti
Thank you both, Bill0 -
Naturally, Knifekits doesn't have titanium spacers in .165" They jump from .150 to .190 That seems like a lot to be sanding off to get to .165"
Next question: Anyone see the pivot that Benchmade uses on the 940-1 in a Titanium version? I'm thinking of replacing the steel one with a Ti one that I anodize blue.
Heck, might as well replace all the screws with titanium screws and anodize them all blue!0 -
Well, knifekits was suggested for .190" Ti standoffs; not .165" Ti standoffs.
For .165" Ti, I would go here:
http://www.ticonnector.com/standoff_187.html0 -
Very helpful, thank you! I may grab some Ti thumb studs as well. 0 -
quote:Originally posted by Keyman:
Well, knifekits was suggested for .190" Ti standoffs; not .165" Ti standoffs.
For .165" Ti, I would go here:
http://www.ticonnector.com/standoff_187.html
OK, I just received a 940-1, and my digital calipers read .161" right behind the stop pin.0 -
LB how do you like the 940-1?
When you figure out the correct size Ti offsets to use PM me as I'd like to get some blue Ti spacers too
Regards Bill Hammer0 -
quote:Originally posted by Bill Hammer:
LB how do you like the 940-1?
When you figure out the correct size Ti offsets to use PM me as I'd like to get some blue Ti spacers too
Regards Bill Hammer
So far I really like it! Incredibly light, no flex in the handle, mine is perfectly centered.
I'm not sure where I'm going to find the right spacers for this. I may have to get the .165 spacers and sand them down.0 -
The 940 has the same build as the Gaucho.
Standoffs are .165".
Are you measuring liner to liner, or scale to scale?
0 -

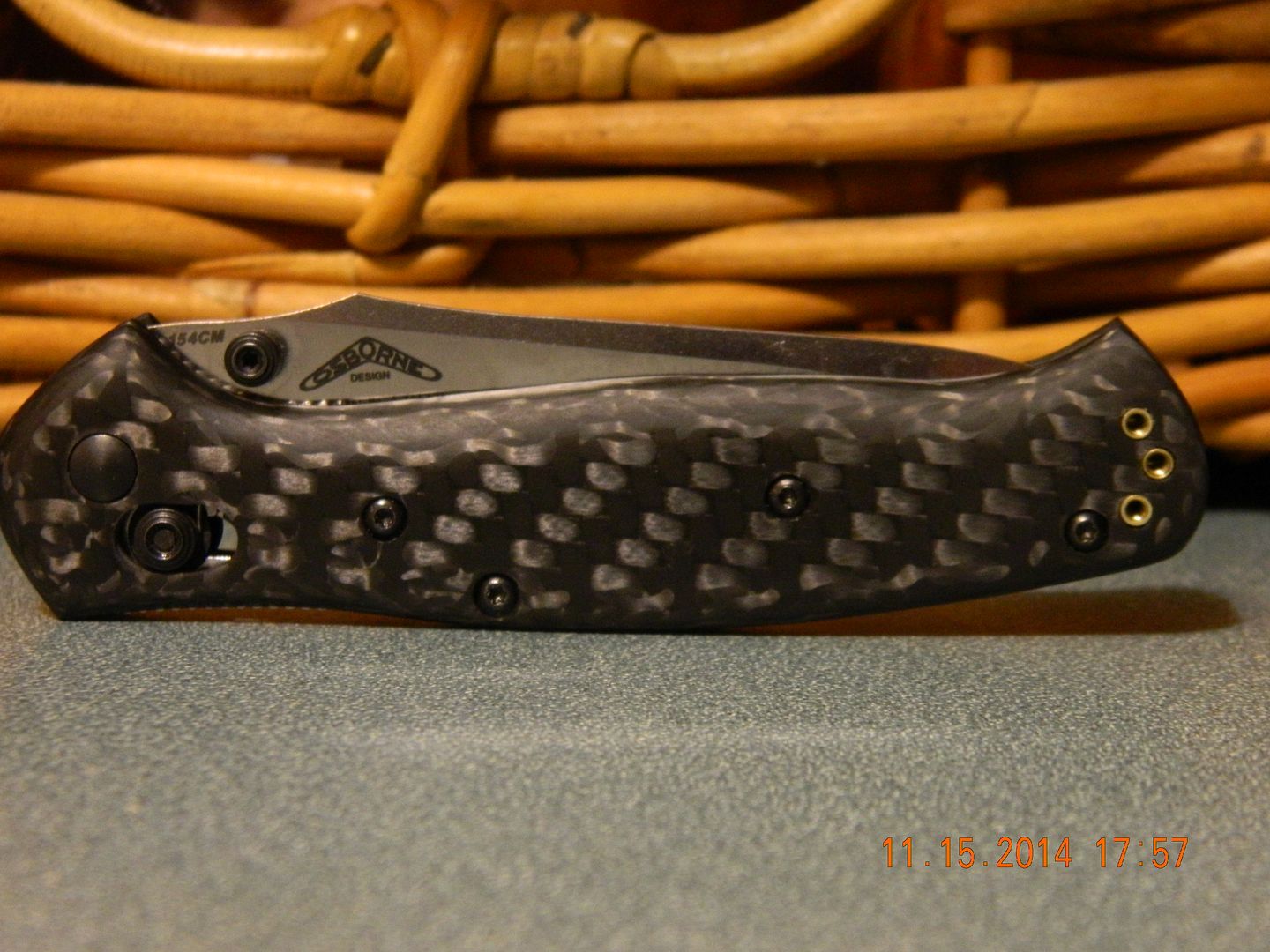

Wow, that's the first time I've noticed that a Gaucho handle looks like a canoe.
0 -
quote:Originally posted by Keyman:
The 940 has the same build as the Gaucho.
Standoffs are .165".
Are you measuring liner to liner, or scale to scale?
Right behind the stop pin.0 -
LB glad to hear your thumbs up on 940-1. While 940-1 isn't only knife I ever carry, like a little Swiss army classic knife, I usually have both and if clothing allows then something bigger as well. But 940-1 is so light you can carry two with less weight than one knife,of another model.
Keyman, that handle makes that knife, never bough one but would have if the stock looked like that
Regards, Bill0 -
quote:Originally posted by Bill Hammer:
Keyman, that handle makes that knife, never bough one but would have if the stock looked like that
Regards, Bill
Thanks Bill.
That is owned by another BM forum member.
It has the same shape as the original Gaucho Aluminum handles except for a small reduction in the big belly that the factory handles have.0 -
quote:Originally posted by loonybin:quote:Originally posted by Keyman:
The 940 has the same build as the Gaucho.
Standoffs are .165".
Are you measuring liner to liner, or scale to scale?
Right behind the stop pin.
The 940 has nested liners.
Let me clarify what I said.quote:Originally posted by Keyman:
One of the most accurate places to measure is between the liners right next to the stop pin.
I would say that the steel liners are nested .0025" too far into the scales.
Which is no big deal.....since, in reality, that is no thicker than a sheet of paper.0 -
quote:Originally posted by Keyman:
The 940 has nested liners.
Let me clarify what I said.quote:Originally posted by Keyman:
One of the most accurate places to measure is between the liners right next to the stop pin.
I would say that the steel liners are nested .0025" too far into the scales.
Which is no big deal.....since, in reality, that is no thicker than a sheet of paper.
I measured metal to metal, as there is 2cm of exposed, un-nested metal behind the stop pin My calipers were in contact with the stop pin and did not contact carbon fiber at all. As long as the .005" doesn't cause a side-side play issue, I'll be happy. Chances are there is just enough flex in the scales to allow for the difference.0 -
Sorry LB, all that is hard to see by just looking at the pictures.
You never know how someone else is going to measure something.
.165" is the magic number.0 -
quote:Originally posted by Keyman:
Sorry LB, all that is hard to see by just looking at the pictures.
You never know how someone else is going to measure something.
.165" is the magic number.
I'll be ordering them this weekend, so we'll see. I was hoping to get some Ti screws as well, but not for the bulk price they require!
0 -
Contego carbon fiber scales
https://youtu.be/8loWBDkRddw0 -
quote:Originally posted by Bill Hammer:
Gentlemen,
I appreciate the information.
I'd like to change out all the Al offsets on all my 940-1,& 950 with Ti
Thank you both, Bill
Just to be sure. Wasn't 940-1 keyed spacer?0 -
quote:Originally posted by Mobile Firelord:quote:Originally posted by Bill Hammer:
Gentlemen,
I appreciate the information.
I'd like to change out all the Al offsets on all my 940-1,& 950 with Ti
Thank you both, Bill
Just to be sure. Wasn't 940-1 keyed spacer?
/|\ Yes 940-1 offsets are keyed0 -
I have a knifeworks BM810-1401, could someone please direct me where to purchase some blue ano'ed standoffs?
Checking knifekits again and there is nothing in the .160/.165 size.
Anyone know if standoffs from a BM 710 would fit?
Or what would fit?
0 -
i don’t think standoffs from a 710 would work since i’m pretty sure the blade is thinner. if i remember correctly tho, the 810 should take a .190” standoff.
0 -
Maybe standoffs from a ZT0452 since they have the same blade thickness ..
Please Help!
0 -
knife kits carries the right size, .190”, in titanium. they’re not anodized tho.
0 -
Not a fan of standoffs or Stainless Steel backspacers. So had DOAT make some out of G10 my 810-1401 little lighter & better balanced
0
